Caldwell Sleeve Lifter MCL-3/4, three leg

Higher capacity, with compact storage. 1,500 lb capacity.

Part number MCL-3/4

The three-leg Caldwell manhole sleeve lifter. It offers a higher capacity than the two-leg model and stows considerably more compactly, as its chain legs collapse rather than remaining rigid.

$1,594.00

Ships at no charge. Shipping is included on the Caldwell sleeve lifters. Lead time is approximately one week.

To place an order with a Purchase Order, call (952) 949-2430 or email sales@grapplerusa.com.

Ordering more than 10? It ships at our standard rates, or call us if you would rather we quote the freight.

PDF Product sheet
PDF Owner's manual

Caldwell Sleeve Lifter MCL-3/4, three leg

Photograph: The Caldwell Group, from the Model MCL product page.

Closer look

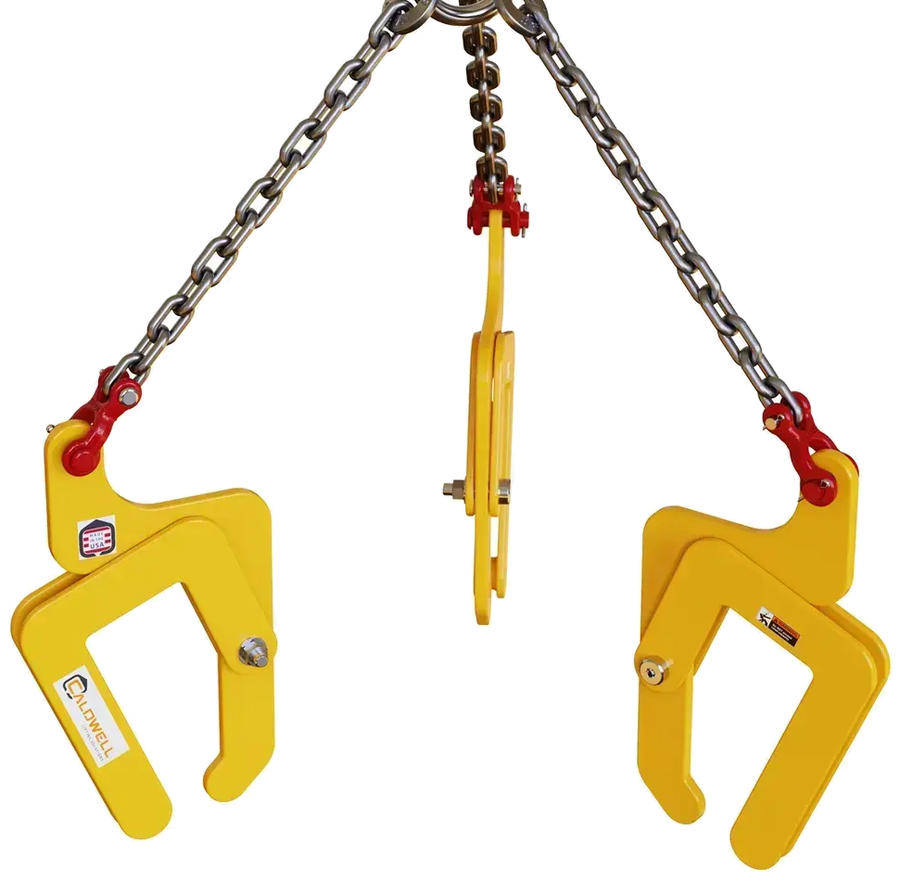

The three-leg MCL-3/4 hanging from its master link with nothing attached, showing all three clamps and the chain shortener — The three legs and the chain shortener, with no load on it

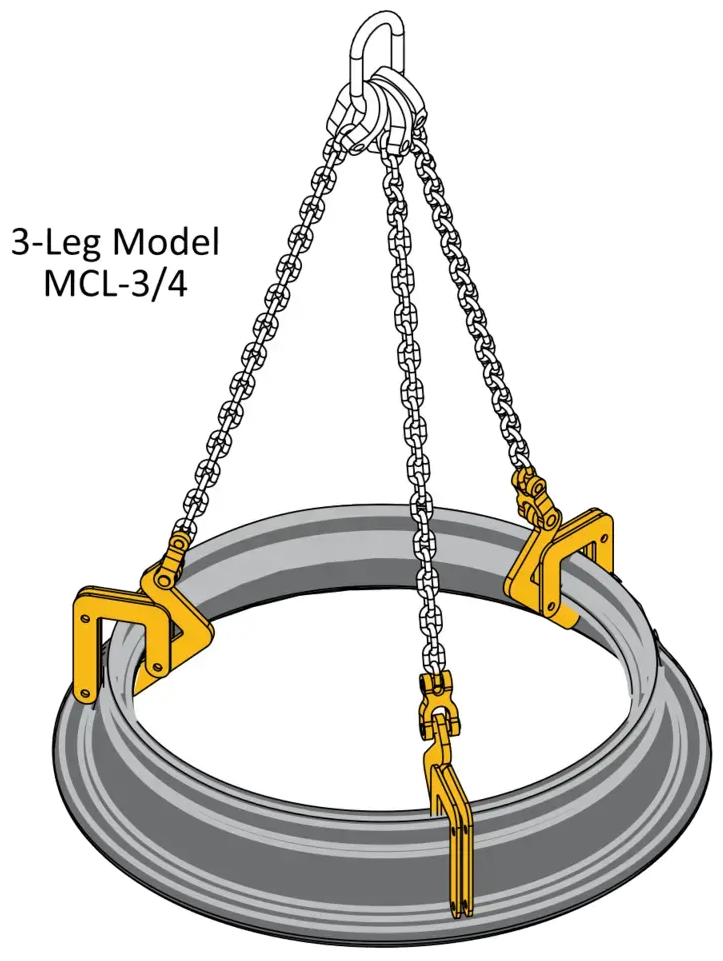

Caldwell drawing of the three-leg MCL-3/4, showing the master link at the top where the three chain legs gather — The whole assembly, including the master link at the top

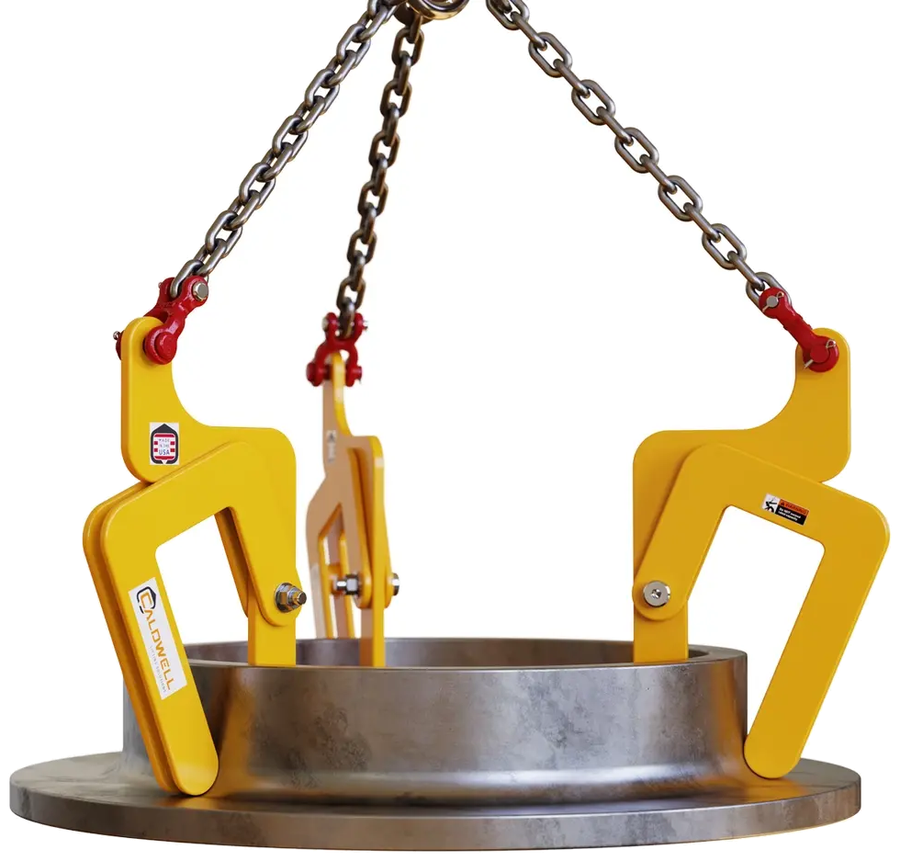

The MCL-3/4 gripping the rim of a flanged concrete sleeve — Gripping the inside flange of a sleeve

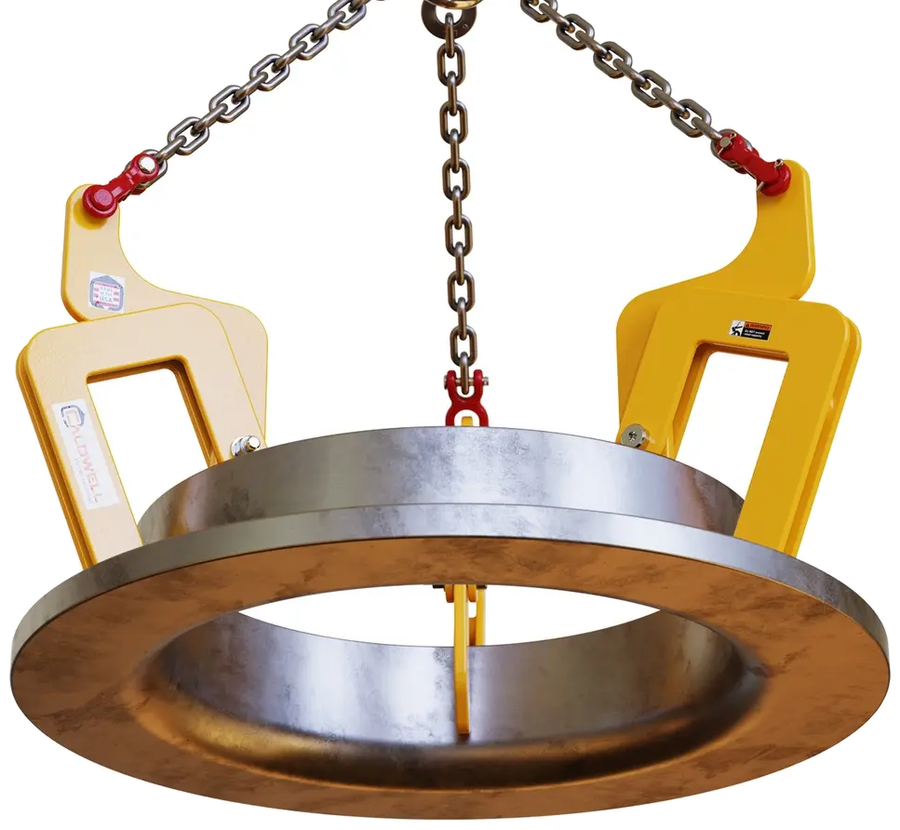

The MCL-3/4 seen from below the sleeve it is carrying — The same lift, seen from below

Features

1,500 lb lifting capacity
Three legs: two at 18 in and one at 30 in with a shortener
Chain legs collapse for compact storage
Unit weight 26 lb
Fits flange diameters from 12 in to 30 in
Shipped at no charge
Lead time of approximately one week

Check the sleeve before ordering either model. Both are friction grip lifters for flanges of 12 in to 30 in diameter, and neither is for straight walled lifts. The MCL-1/2 is the same tool with two legs and 1,000 lb capacity. Replaces the discontinued Grappler Casting Puller.

Questions before ordering?

Please call to speak with someone familiar with the product. Inquiries regarding dealer pricing, volume orders, and municipal specifications are welcome.

(952) 949-2430 Send a message
